Yale Towerlift / Towerlift ES
Hand chain hoist model Yalelift 360 Capacities 1,000 & 2,000 kg
The Towerlift is the inverted version of the
Yalelift 360 and specifically designed for
operation on traversing tower systems.
Options
- Spark Resistant Options
- Corrosion Resistant Options
- Chain Containers
Features
- The unit is provided with a special chain guide
and a totally enclosed housing.
- The basic version of the Towerlift offers
capacities of 1.000 kg and 2.000 kg.
- Black powder coat finish as standard

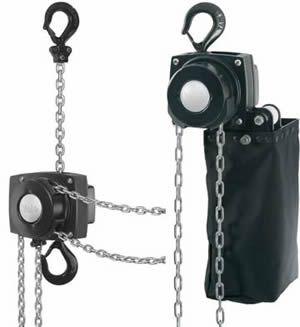

Yale Towerlift Hand Chain Hoist
The Yalelift360 Towerlift is the inverted version of the Yalelift 360 and specifically designed for operation on
traversing tower systems. It is provided with a special chain guide and totally enclosed housing. The basic version of
the Towerlift offers capacities of 1000 and 2000kgs. The unit is supplied with a black powder coat finish as standard.
Yale Towerlift / Towelift ES Technical Data
Model |
Capacity in kg |
Number of chain falls |
Chain dimensions
d x p in mm |
Hand chain overhaul for
1 m lift (m) |
Pull on hand chain at WLL daN |
Net weight at std. lift(3 m)kg |
Towerlift |
1000 |
1 |
6 x 18 |
49 |
30 |
14 |
|
2000 |
1 |
8 x 24 |
71 |
32 |
21 |
Towerlift ES |
1000 |
1 |
6 x 18 |
49 |
30 |
15 |
Yale Towerlift ES - Capacity 1.000 kg
The Towerlift ES is a further development of the Towerlift. Like the Towerlift the model ES is provided with a chain reeving system
specifically designed for the stage/entertainment
industry. This allows operation in
standard hoist configuration as well as in
inverted mode.
- The hoist comes with revolving chain container which can be fully used in standard hoist configuration as well as in inverted mode.
- Black powder coat finish.
Yale Towerlift / Towerlift ES Dimensions
Dimensions (mm) |
Towerlift 1000 |
Towerlift 2000 |
Towerlift ES 1000 |
A min. |
335 |
395 |
335 |
B |
22 |
30 |
22 |
C |
29 |
35 |
29 |
D |
156 |
182 |
213 |
E |
205 |
243 |
232 |
F |
157 |
183 |
212 |
G |
164 |
192 |
164 |
H |
242 |
283 |
299 |
I |
24 |
31 |
24 |
K |
70 |
83 |
124 |
L |
87 |
100 |
88 |
M |
125 |
156 |
125 |
N |
19 |
22 |
19 |
O |
– |
– |
335 |
P |
– |
– |
593 |
S |
– |
– |
455 |
